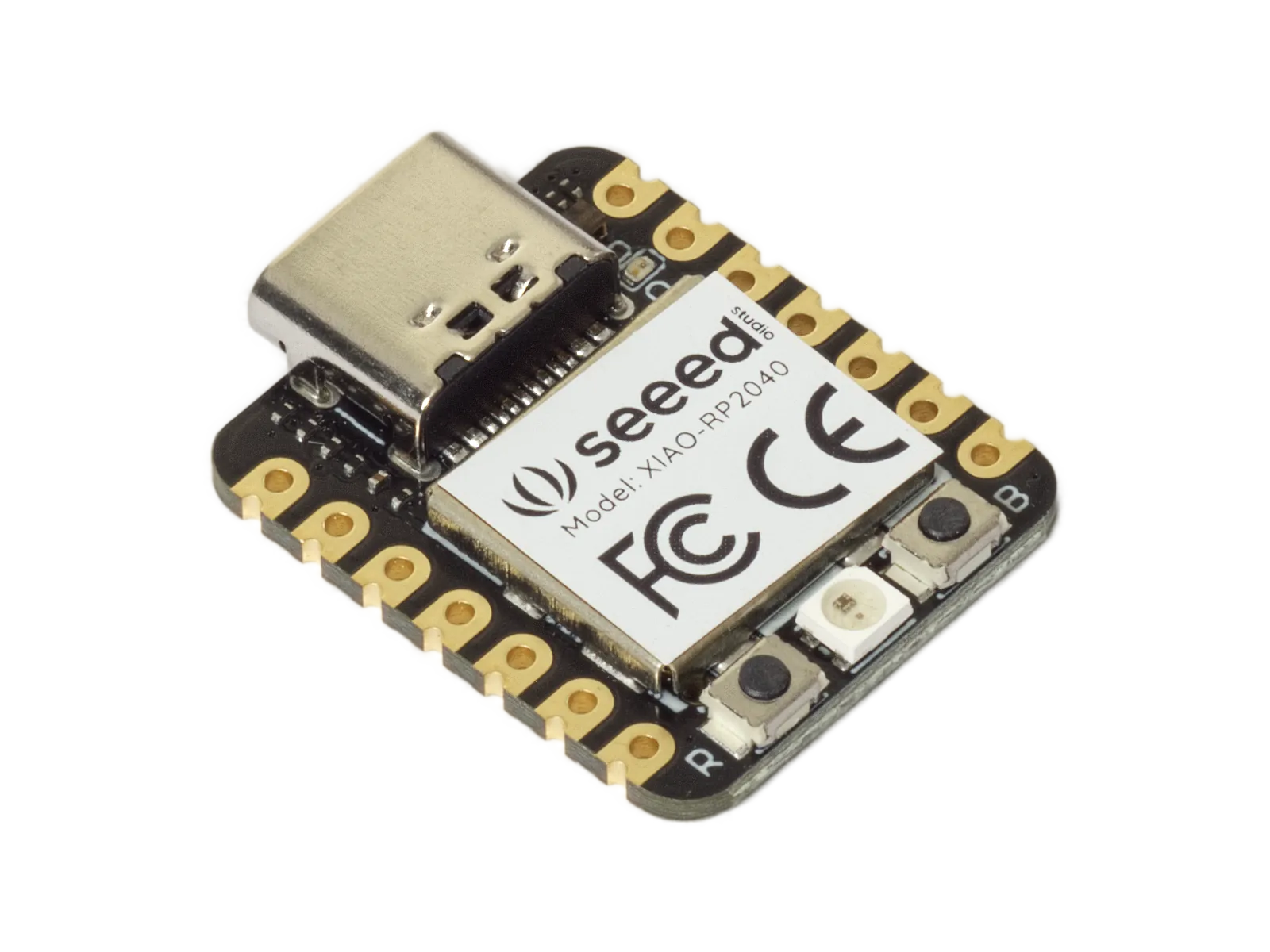

Seeed XIAO RP2040 Microcontroller
Artikelnummer: xiao_rp2040
zzgl. Versandkosten
- (DE) Kostenlose Lieferung ab 59€
- schnelle Lieferung

Seeed XIAO RP2040 Microcontroller
Ähnlich wie der Arduino Nano RP2040 und der Raspberry Pi Pico ist der XIAO RP2040 mit dem gleichen Chip-Mikrocontroller RP2040 ausgestattet.
Der RP2040 verfügt über einen Dual-Core-Arm-Cortex-M0+-Prozessor, der mit bis zu 133 MHz getaktet ist. Es verfügt über 264 K SRAM und 2 MB Onboard-Speicher. Mit zwei schnellen Kernen, viel On-Chip-RAM und einem Port für das TensorFlow Lite-Framework von Google ist XIAO RP2040 eine großartige Plattform für Anwendungen für maschinelles Lernen.
XIAO RP2040 ist ein leistungsstarker und stromsparender Mikrocontroller, der sich ideal für verschiedene tragbare und kleine Projekte eignet. Es kann in C/C++ und dem einsteigerfreundlichen MicroPython programmiert werden. Und es hat keine Komponenten auf der Rückseite, ist für Steckbretter geeignet und hat ein SMD-Design, wodurch es einfach für Projekte verwendet werden kann.
Der XIAO RP2040 unterstützt vollständig Arduino, MicroPython und CircuitPython.
Technische Daten:
Parameter | Seeed XIAO RP2040 |
---|---|
CPU | Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz |
Speicher | 264KB of SRAM, and 2MB of onboard Flash memory |
I/O PINs | 11 digital pins, 4 analog pins, 11 PWM Pins |
Interface | 1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface |
Power supply & Downloading interface | USB Type-C interface |
LEDs | 1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED |
Button | 1 RESET button, 1 BOOT button |
Power Pads | For the battery power supply |
Software compatibility | Support Micropython / Arduino / CircuitPython |
Abmessung | 20×17.5×3.5 mm |
Achtung!
Alle E/A-Pins haben 3,3 V, bitte geben Sie nicht mehr als 3,3 V ein, da sonst die CPU beschädigt werden kann.
Seeed XIAO-Serie
Eine Referenz zur Produktauswahl der Seeeduino XIAO-Serie finden Sie hier. Die Tabelle vergleicht Seeedino XIAO, Seeed XIAO RP2040, Seeed XIAO BLE und Seeed XIAO BLE Sense im Detail in Bezug auf Prozessor, Speicher, Schnittstelle usw.
Seeed XIAO RP2040 | Seeeduino XIAO | Seeed XIAO BLE | Seeed XIAO BLE Sense | |
---|---|---|---|---|
Processor | RP2040 Dual-core M0+@133Mhz | SAMD21 M0+@48MHz | nRF52840 M4F@64MHz | nRF52840 M4F@64MHz |
Wireless Connectivity | N/A | N/A | Bluetooth 5.0/BLE/NFC | Bluetooth 5.0/BLE/NFC |
Memory | 264 KB SRAM 2MB onboard Flash | 32 KB SRAM 256KB FLASH | 256 KB RAM, 1MB Flash 2MB onboard Flash | 256 KB RAM, 1MB Flash 2MB onboard Flash |
Built-in Sensors | N/A | N/A | N/A | 6 DOF IMU (LSM6DS3TR-C), PDM Microphone |
Interfaces | I2C/UART/SPI | I2C/UART/SPI | I2C/UART/SPI | I2C/UART/SPI |
PWM/Analog Pins | 11/4 | 11/11 | 11/6 | 11/6 |
Onboard Buttons | Reset/ Boot Button | N/A | Reset Button | Reset Button |
Onboard LEDs | Full-color RGB/ 3-in-one LED | N/A | 3-in-one LED/ Charge LED | 3-in-one LED/ Charge LED |
Battery Charge Chip | N/A | N/A | BQ25101 | BQ25101 |
Programming Languages | Arduino/ MicroPython/ CircuitPython | Arduino/ CircuitPython | Arduino/ MicroPython/ CircuitPython | Arduino/ MicroPython/ CircuitPython |
Vergleich zwischen SAMD21 vs RP2040
SAMD21 | RP2040 | |
---|---|---|
Processor | ARM® Cortex®-M0+ CPU running at up to 48 MHz | Dual ARM Cortex-M0+ @ 133MHz |
Memories | • 32/64/128/256 KB in-system self-programmable Flash • 4/8/16/32 KB SRAM Memory |
• 264kB on-chip SRAM in six independent banks • Support for up to 16MB of off-chip Flash memory via dedicated QSPI bus |
ADC | 12-bit resolution and capable of converting up to 350ksps | 3 available × 12-bit |
I/O | Up to 52 programmable I/O pins | 30 GPIO pins, 4 of which can be used as analogue inputs |
Low Power | • Idle and Stand-by Sleep modes • SleepWalking peripherals | Low power sleep-mode entry using Wait For Interrupt (WFI), Wait For Event (WFE) instructions, or the return from interrupt sleep-on-exit feature |
Vergleich zwischen Seeeduino XIAO und XIAO RP2040
XIAO RP2040 | Seeeduino XIAO | |
---|---|---|
Processor | Dual-core ARM® Cortex® M0+ @133MHz | ARM® Cortex®-M0+ @48MHz |
Flash | 2MB | 256KB |
Onboard Button | Reset Button/ Boot Button | No Button(reset pad) |
RGB LED | Full-Color RGB LED | None |
Analog Pin | 4 | 11 |
PWM Pin | 11 | 10 |
DAC Output | None | 1 |
Programming language | Arduino MicroPython CircuitPython | Arduino CircuitPython |
Lieferumfang:
- 1x Seeed XIAO RP2040 inkl. Pins
