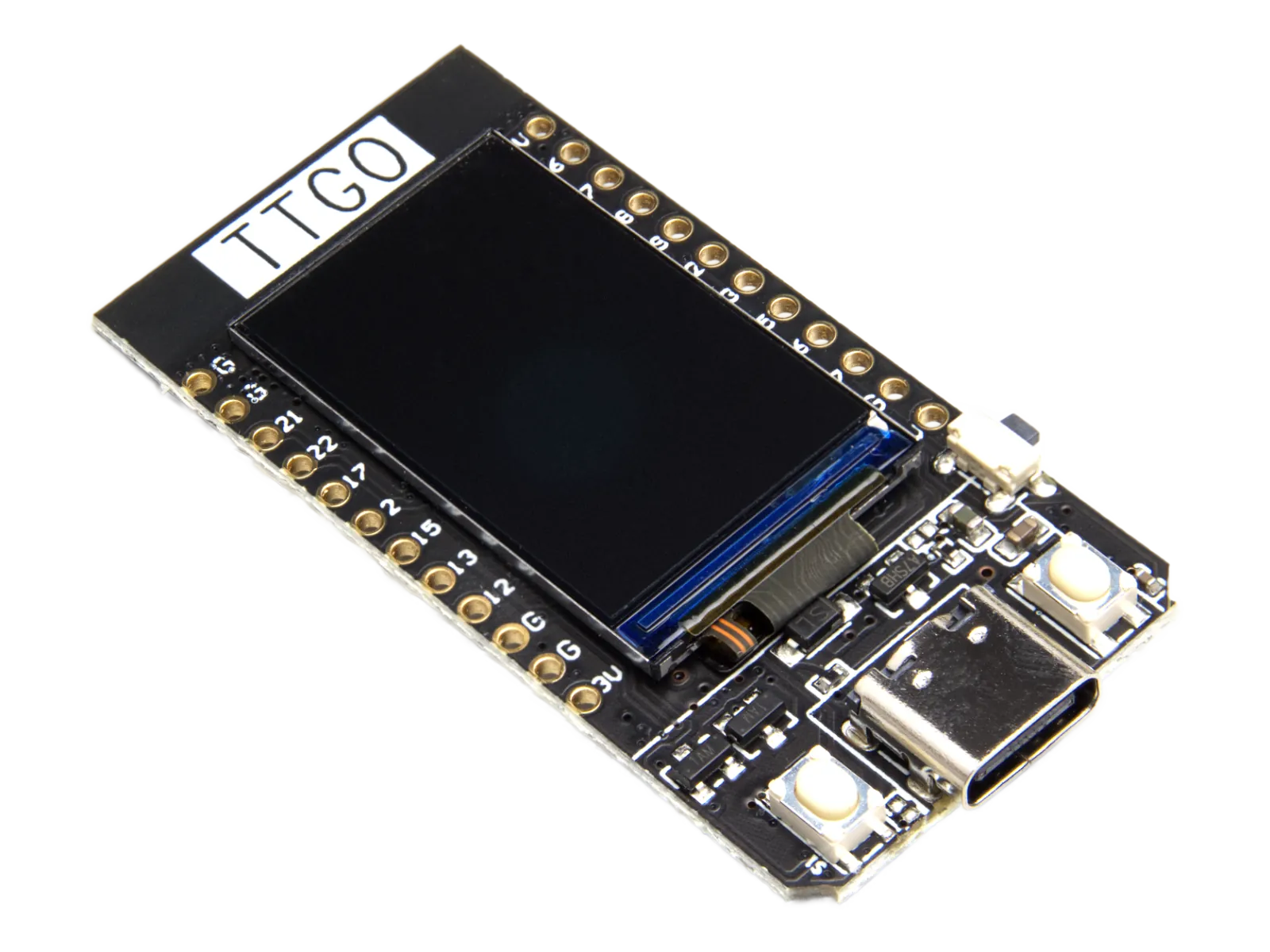

LILYGO®TTGO T-Display (1.14 Inch LCD color) ESP32 16MB WiFi Bluetooth Module
Artikelnummer: LILYGO-TTGO-16mb
Regulärer Preis
19,99 €
Verkaufspreis
19,99 €
Regulärer Preis
Stückpreis
pro
inkl. MwSt.
Versand wird an der Kasse berechnet.
zzgl. Versandkosten
- (DE) Kostenlose Lieferung ab 59€
- schnelle Lieferung
Share:

LILYGO®TTGO T-Display (1.14 Inch LCD color) ESP32 16MB WiFi Bluetooth Module
Regulärer Preis
19,99 €
Verkaufspreis
19,99 €
Regulärer Preis
Stückpreis
pro
LILYGO®TTGO T-Display (1.14 Inch LCD color) ESP32 16MB WiFi Bluetooth Module
Technische Daten:
Hardware Spezifikation | |
---|---|
Chipset | ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor |
FLASH | QSPI flash 16MB |
SRAM | 520 kB SRAM |
Button | Reset |
Modular interface | UART, SPI ,SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifier |
Display | IPS ST7789V 1.14 Inch |
Betriebsspannung | 2.7V-4.2V |
Betriebsstrom | über 67mA |
Schlafstrom | über 350uA |
Betreibestemperatur | -40℃ ~ +85℃ |
Größe | 51.52*25.04*8.54mm |
Gewicht | 7.81g |
Stromversorgung Spezifikation | |
---|---|
Power Supply | USB 5V/1A |
Charging current | 500mA |
Battery | 3.7V lithium battery |
JST Connector | 2Pin 1.25mm |
USB | Type-C |
Wi-Fi | |
---|---|
Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip) |
Protocol | 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval |
Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
Transmit Power | 22dBm |
Communication distance | 300m |
Bluetooth | |
---|---|
Protocol | Meet bluetooth v4.2BR/EDR and BLE standard |
Radio frequency | With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
Audio frequency | CVSD&SBC audio frequency |
Software Spezifikation | |
---|---|
Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
Encryption Type | AES/RSA/ECC/SHA |
Firmware upgrade | UART download/OTA(Through network/host to download and write firmware) |
Software Development | Support cloud server development /SDK for user firmware development |
Networking protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
User Configuration | AT + Instruction set, cloud server, android/iOSapp |
OS | FreeRTOS |
Lieferumfang:
- 1x LILYGO®TTGO T-Display (1.14 Inch LCD color) ESP32 16MB WiFi Bluetooth Module
- 2x Stiftleiste 1x12 Pin
- 1x Ladekabel Pin
